Star of Shamash

A Jim-dandy! art project for Burning Man 2014, Caravansary!

2018 UPDATE:  Due to circumstances beyond my control, I was unable to bring my art to the playa in 2014.  This year I was able to get all of the LED lights working correctly and I will be able to bring it to the playa!  I will set it up at camp Entheos at Esplanade & 3:45 so come and see it there.

2014 was my 8th year attending Burning Man and I intended to participate by bringing art to the playa.  [click here to go to my art installation participation questionnaire responses.]  The theme for Burning Man 2014 was Caravansary.  Back in the time and region of Mesopotamia, Shamash was the name of the Babylonian sun god.  The symbol for this sun god was the Star of Shamash.  Many caravans travelling along the Silk Road near the Babylonian region of Mesopotamia may have encountered the Star of Shamash.  In honor of the 2014 Burning man theme, Caravansary, I am building an 8 foot diameter, 4 1/8 inch thick, wooden star structure.  This Star of Shamash will be a night time beacon of colorful light attracting burners to this Babylonian sun god, Shamash, for night-time sun worshipping.  I intend to light it up with RGB LED light modules, but only on the inside walls of the cut-out shapes and the outer rim, in a similar manner to the way the 2013 Idaho Core art project "Marvin" was lit up [click here for a video of Marvin].  To better reflect the LED light, I'll paint the inside walls with white paint.  See the bottom of this page for my plan for the LED lights.  I made a 3D model of my Star of Shamash in a virtual world creation software, Sim-on-a-Stick (a local version of Open Sim) and took snapshots of it to portray my idea in images shown below.  I have decided NOT to burn it at the end of the event because I want everyone to be able to enjoy it at camp Entheos year after year!  [click here to go to my construction progress page.]




Shamash-Sun-God
This first image is of an actual Star of Shamash.



Star_of_Shamash
This image is my chosen conceptual pattern of the star symbol.



Star_of_Shamash
This avatar’s name is Simona Stick and she is 5’ 7" tall.
The star structure is 8’ tall sitting on a 1’ tall base.



Star_of_Shamash
Same view but different colors.



Star_of_Shamash



Star_of_Shamash



Star_of_Shamash



Star_of_Shamash



Star_of_Shamash



Star_of_Shamash



Star_of_Shamash



Star_of_Shamash



Star_of_Shamash



Star_of_Shamash



Star_of_Shamash



Star_of_Shamash
View at mid-day (with cloud cover).



Star_of_Shamash
View at mid-day.



Star_of_Shamash
View at sunset.



Star_of_Shamash
Another possible installation method -- suspending it with scaffolding.




To see a video of the 3D structure click this link to Youtube.com:  https://youtu.be/eRDl5ZRqcic  or the embedded link below:



Easy Stand Alone SLESA-UE7 DMX Controller My plan is to use Nicolaudie’s Easy Stand Alone 2 and/or Easy Stand Alone Pro software to create lighting sequences (light shows) to creatively light up the star with LED lights.  This software works with Nicolaudie’s Easy Stand Alone SLESA-UE7 USB to DMX Interface/DMX Controller (left) to store and play the light sequences (without a computer).  The DMX output will be connected to HolidayCoro’s #614 EasyPix DMX to SPI Decoder (upper right) which will power and control the LED lights (right).  I'll be using 169 of HolidayCoro’s #656 Smart/Pixel Rectangle RGB LED Waterproof Modules (WS2811, 12v, 3 wire, 3 RGB LED’s per module).  Each of the 169 LED modules will be controlled independently.  Everything will be powered by a 12 volt battery charged by a battery charge controller and a solar panel if placed out on the playa, or just plugged into power if it is available.  My Star of Shamash wiring schematic and wiring diagram are below. EasyPix DMX Decoder
Smart/Pixel LED Modules

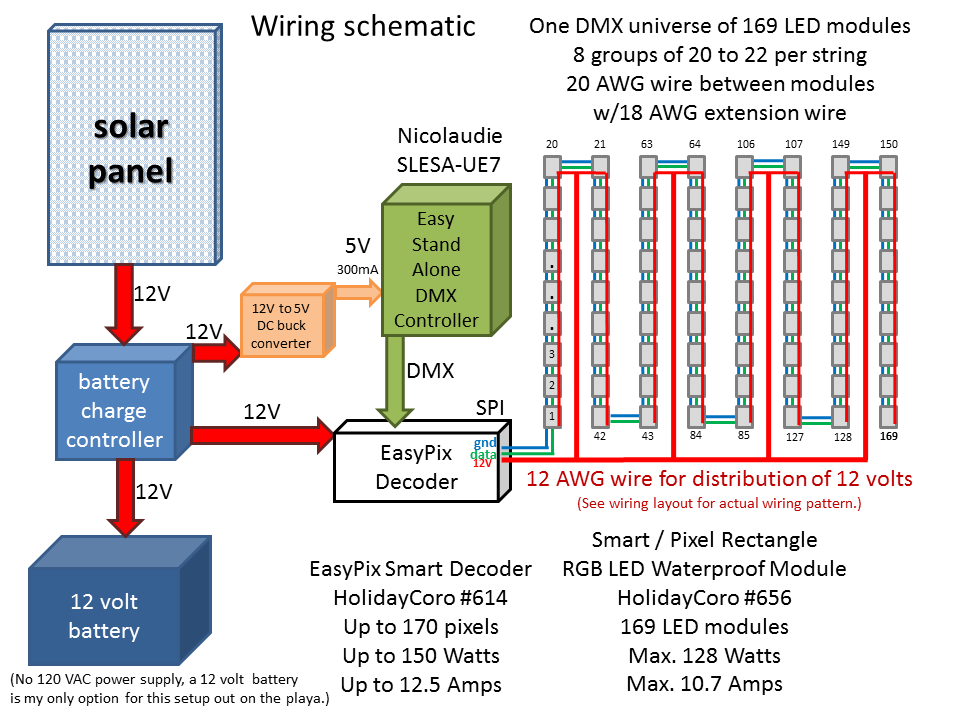

SoS wiring schematic

  SoS wiring diagram




  [click here to go to my construction progress page.]
